WMF Series DME Style Mainframe

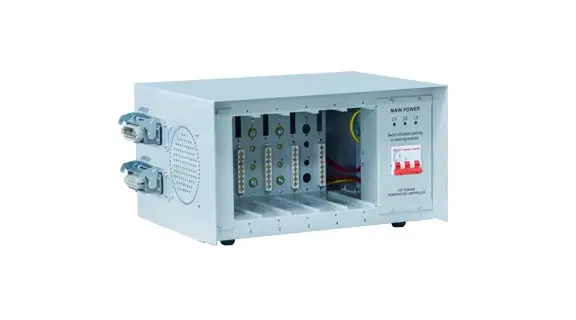

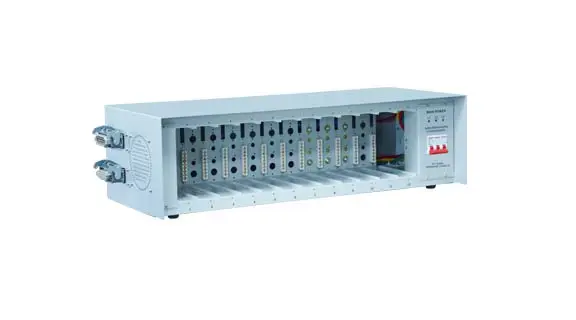

Tinko WMF Series Mainframes are grey color DME style mainframes. They have solid structure and durability and can be fixed in DME, Polimold, ITC floor stand. This kind of mainframe is very popular in North America.

For WMF series mainframes, we can make 5, 8, 12 zones with 15 Amps per zone. We also provide special functions like alarm output, remote standby, RS485 communication upon request. Moreover, we can provide customization service if you need.

Get A Quote
hot runner controller system
hot runner controller system

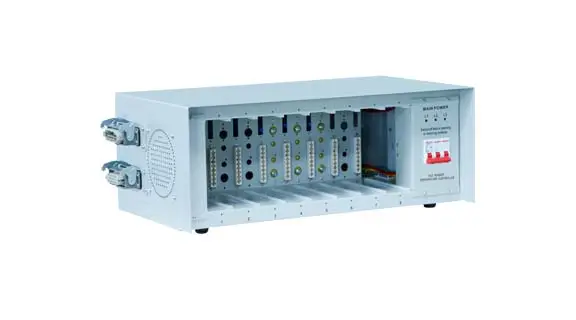

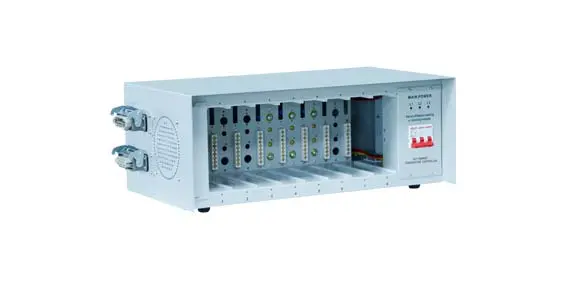

custom hot runner controller

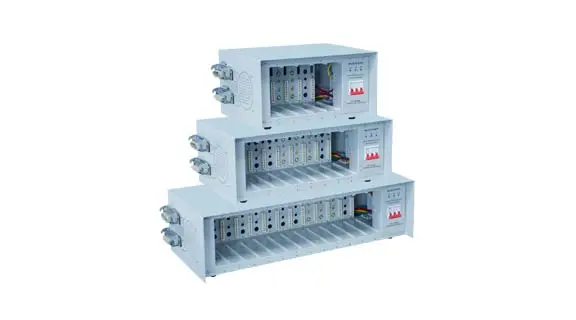

hot runner controller

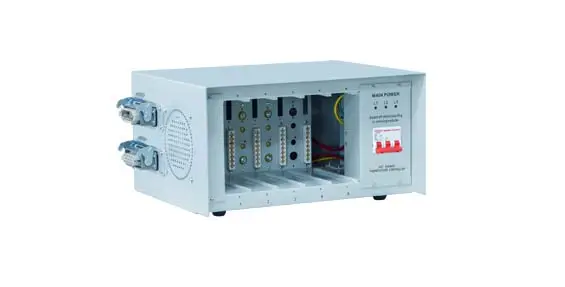

hot runner temperature controller

Features of WMF Series DME Style Mainframe

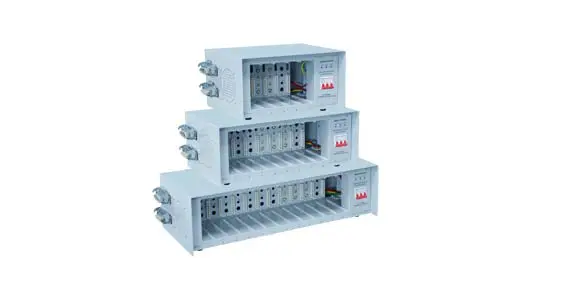

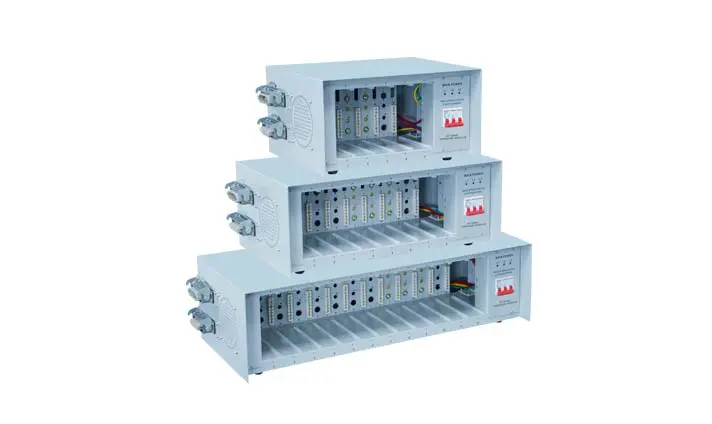

  • Standard DME size

  • Stackable design, save installation space

  • Fan built-in for heat radiation

  • Terminals and wires crimped by auto machine

  • Stable construction, reliable performance

Features of WMF Series DME Style Mainframe

Specification of WMF Series DME Style Mainframe

Power Supply1-phase 3-wirc, 240Vac, 50/60HzControl ModuleHRTC-A1/HRTC-B1/HRTC-G1
3-phase 4-wire,240Vac,50/60HzSensor TypeThermocouple J or K
3-phase 5-wirc, 380Vac,5060HzControl ModeAuto-PID /Manual
Temperature Control0~450℃ (32~842℉)Control AccuracyDepends on the module type
Output TypeZero Cross /Phase AngleLoad Capacity15A.100~360Ow @ 240Vac per zone
Connector TypeCustomized
Wiring ModeCustomizedStorage Temperature-20~70℃ (-4~158℉)
Working Temperature0-55℃ (32~131℉)Working Humidity10-85%RH (No condensing)

Functions of WMF Series DME Style Mainframe

difference between hot runner mold and cold runner mold
  • Auto, manual, standby function

  • Dehumidify soft start function

  • High/Low temperature alarm

  • Thermocouple open, reverse, short alarm

  • Heater open, short, overload alarm

  • Fuse break alarm

  • Over voltage protection function

  • Remote standby function (optional)

  • Alarm output function (optional)

  • RS485 communication (optional)

Hot Runner Controller

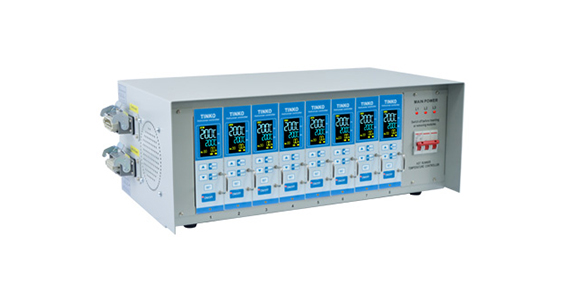

  • Control module: HRTC-G1, B1

  • Internal wiring & components

  • Input power line, 3 meter (standard)

  • Output Mold thermocouple and power cables, 3 meter (standard)

  • Connectors

Wiring Diagram
Hot Runner Temperature Controller
  • Standard DME wiring for 5/8/12 zones

  • Customized wiring

Connector Type
Custom Hot Runner Controller
  • HA, HD, HE, HQ series

  • 5, 10, 16, 24, 25, 32, 48 pins insert

  • 1 or 2 lever housing

  • Single or double latch hood, top or side cable entry

  • Other customization
