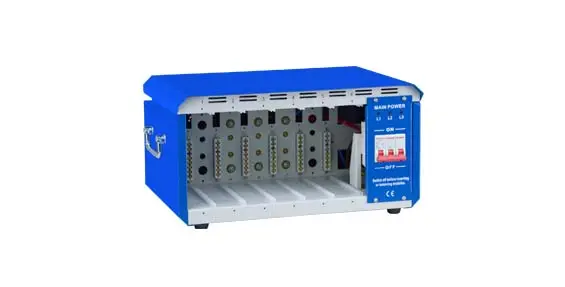

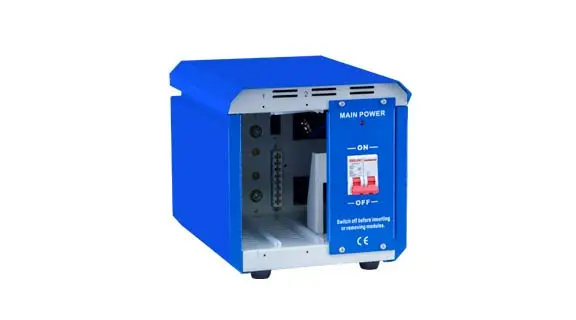

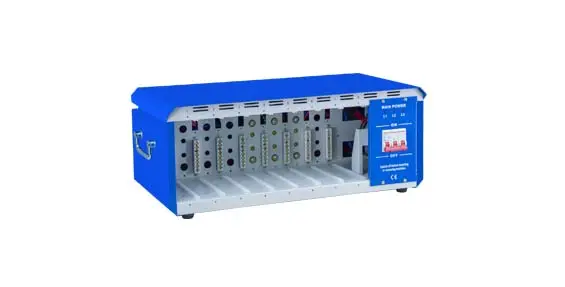

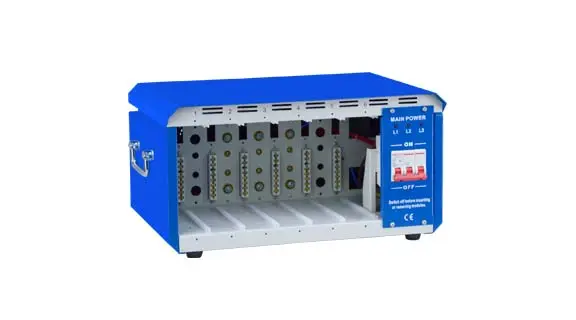

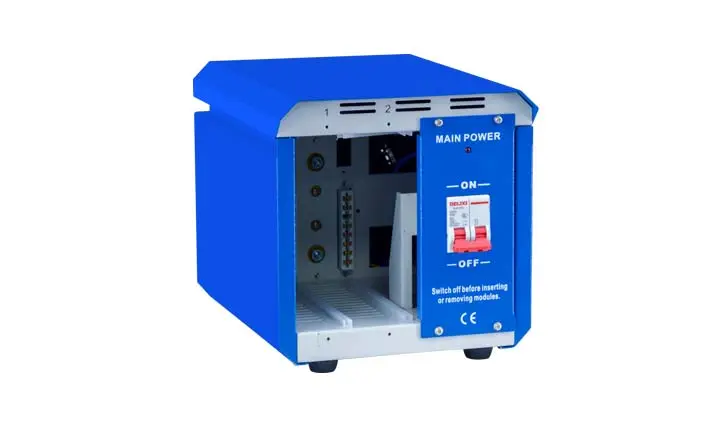

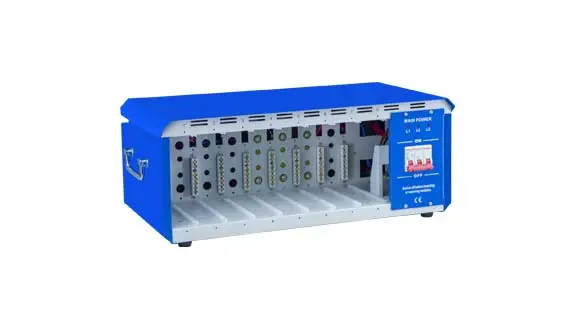

TMF Series Standard Mainframe

Tinko TMF Series Mainframes are blue color new mainframes. All of our mainframes have solid structure and durability and are interchangeable with DME, Athena, YUDO, Husky, INCOE control modules and mainframes.

For TMF series mainframes, we can make 1, 2, 4, 6, 8, 12 to 24 zones, with 15 Amps per zone. We also offer 30Amps per zone and special functions like alarm output, RS485 communication upon request. Moreover, we can provide customization service if you need.

Get A Quote
hot runner controller market
hot runner controller market
hot runner controller price
tmf series standard mainframe
hot runner controller manufacturers

Features of TMF Series Standard Mainframe

  • Beautiful and standard size design

  • Stackable design, save installation space

  • Fan built-in for heat radiation

  • Terminals and wires crimped by auto machine

  • Stable construction, reliable performance

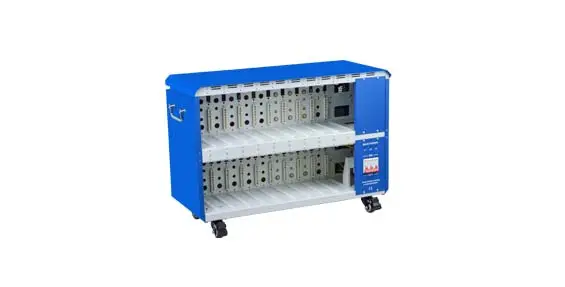

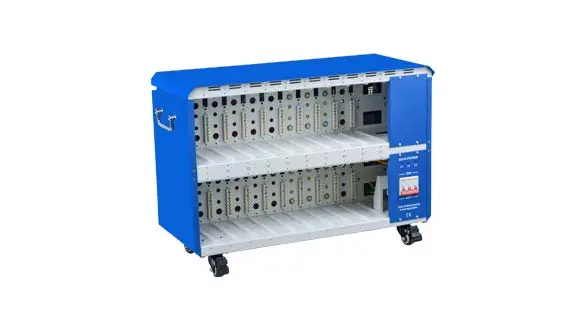

  • Dual deck with wheels for over 12 zones mainframes

Features of TMF Series Standard Mainframe

Functions of TMF Series Standard Mainframe

Hot Runner Temperature Controller Working
  • Control module: HRTC-G1, B1, N1, C1, F2

  • Internal wiring & components

  • Input power line, 3 meter (standard)

  • Output Mold thermocouple and power cables, 3 meter (standard)

  • Connectors

Wiring Diagram
Hot Runner Controller Wiring Diagram
  • Combined T/C & heater wiring (e.g heater:1-2, T/C: 3+4-…)

  • Separated T/C & heater wiring (e.g heater:1-13, T/C:1+13-…)

  • DME wiring for 5/8/12 zones

  • Customized wiring

Connector Type
Hot Runner Controller Systems
  • HA, HD, HE, HQ series

  • 5, 10, 16, 24, 25, 32, 48 pins insert

  • 1 or 2 lever housing

  • Single or double latch hood, top or side cable entry

  • Other customization
