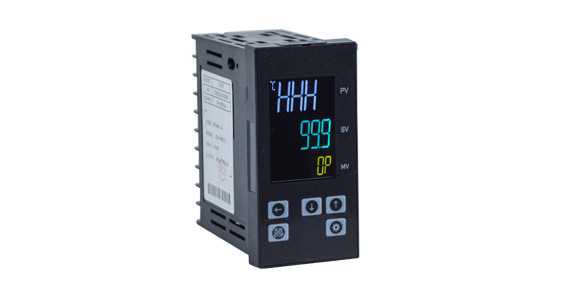

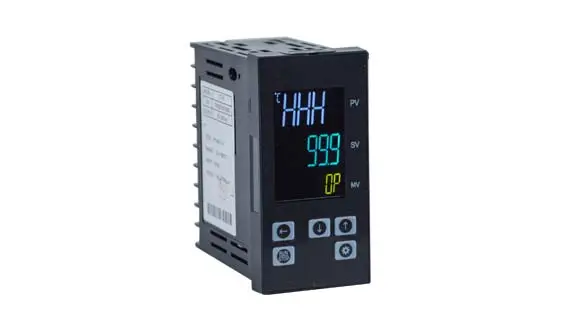

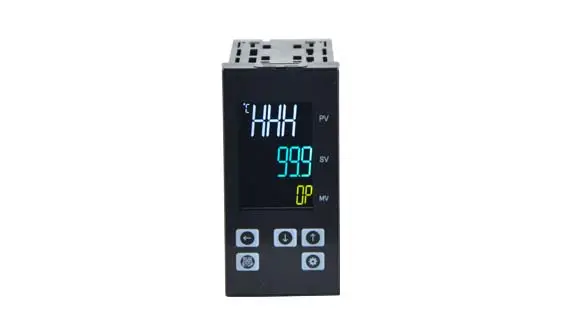

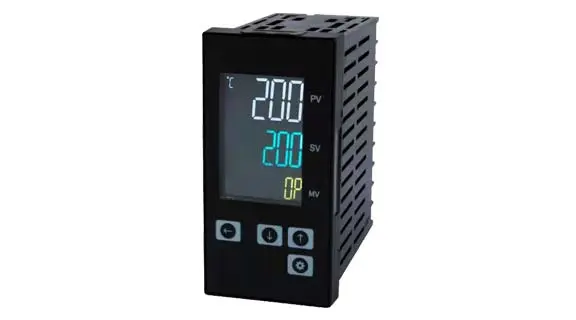

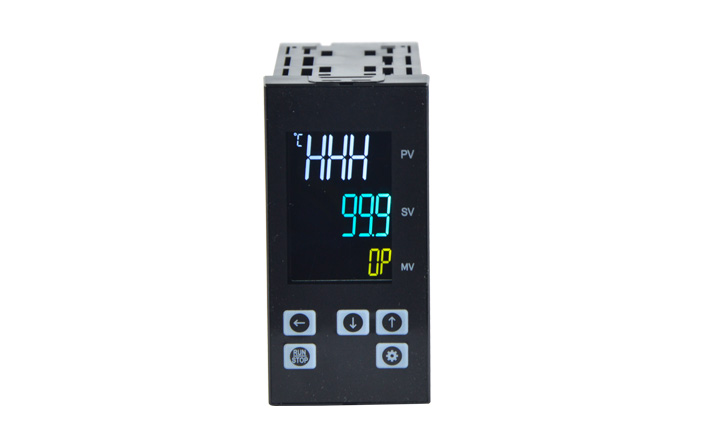

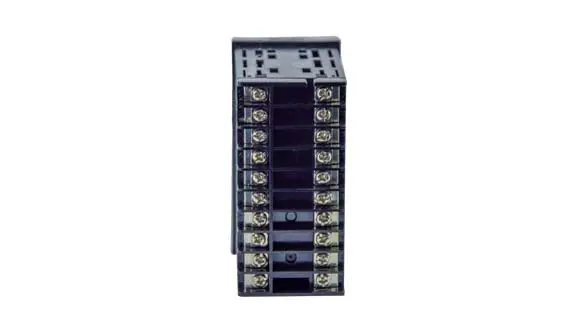

Tinko CTH series panel mount controller is an industry-leading PID controller that allows optimal performance utilizing simple control and menu functionality without complex features. It is ideally suited for basic applications and usage levels. It can be ordered as a PID process controller or as a ON/OFF temperature controller.
PID auto tuning, manual control
Dual LCD display
High accuracy and resolution
Sensor break, reverse, short alarm
Heater break alarm
Optional relay alarm output
RS485 communication optional
| Power Supply | AC85~265V, 50/60Hz |
| Accuracy | ± 0.5% F.S. |
| Sensor Input | Thermocouple (K, E, J, T) |
| RTD (Pt100) | |
| Display Unit | Dual 3-digit LCD |
| Resolution | 1°C / 0.1°C |
| Output mode | Relay contact, AC250V/3A |
| SSR Drive (Voltage pulse) | |
| DC. 4~20mA | |
| Alarm Output | Relay contact, AC250V/3A |
| Working environment | 0~50°C, 25~85% RH |
| Panel Size (mm) | 48*96 |
C T H - £ F £ £ £ - £ - £ £ £ - £ - C C
(1) (2) (3) (4) (5)
(1) Front Panel Size (W×H, mm)
5: 48*96
(2) Input Signal & Range
K03: K (-50~999°C) E03: E (-50~800°C) J03: J(-50~999°C)
T03: T (-50~400°C) P03: Pt100 (-20~580°C) P06: Pt100 (-19.9~99.9°C)
(3) Control Output
M: Relay contact (AC250V, 3A) V: SSR Drive (Voltage pulse)
8: DC.4-20mA
(4) Alarm output
Blank: None M: 1 x Relay contact (AC250V, 3A)
MM: 2 x Relay contact (AC250V, 3A) MMM: 3 x Relay contact (AC250V, 3A)
(5) Communication
Blank: None C1: RS485 communication
