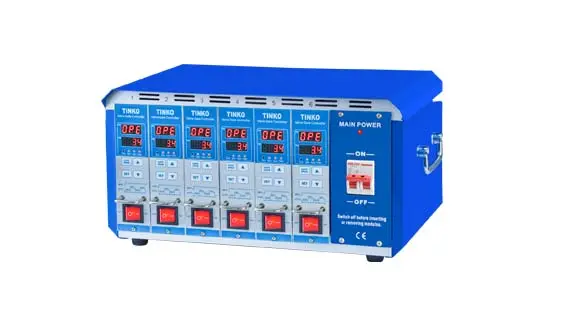

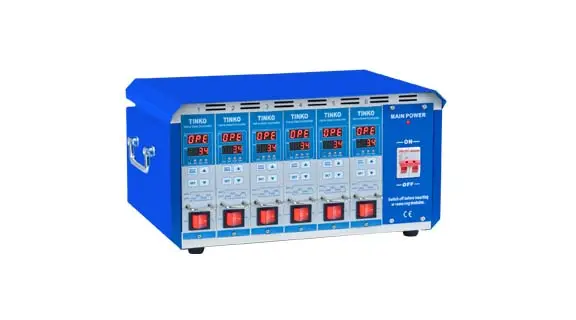

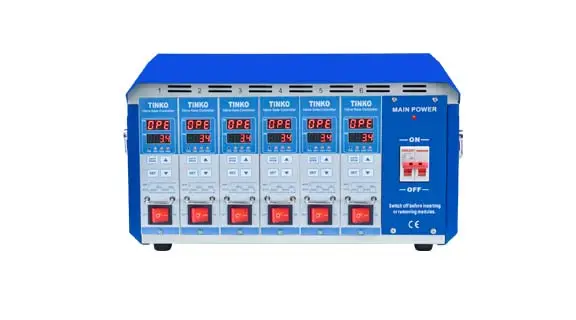

SVGC Modular Controller

Tinko SVGC series controller is a modular designed sequential valve gate controller. This valve gate controller is used for hot runner systems with either pneumatic or hydraulic valve gates. It has the ability to selectively open or close each valve gate individually to precisely control the material flow front. This sequential valve gate controller helps improve the welding line position of product and correct product defects, improve production efficiency and make product reach best quality.

Get A Quote
hydraulic valve gate controller
hydraulic valve gate controller
valve gate controller
sequential valve gate

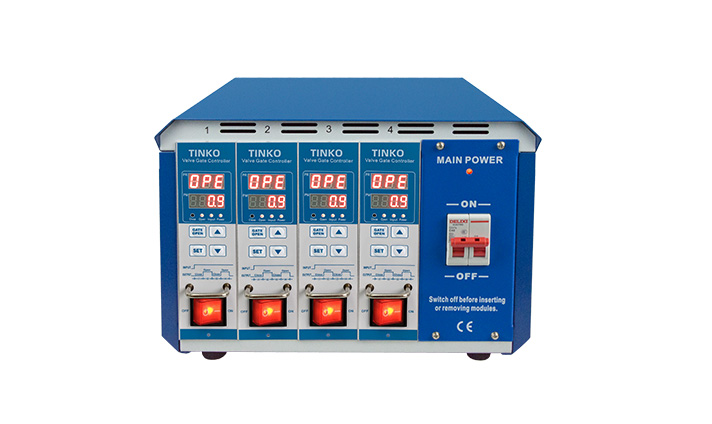

Features of SVGC Modular Controller

  • New design construction

  • Standard modular cabinet

  • LED display

  • 1-24 zone available

  • Time display resolution: 0.1s or 0.01s

  • Injection signal: DC24V or Relay contact

  • Output type: DC24V, AC220V or relay contact

  • Two operating modes available for each valve gate

  • Automatic and manual mode for individual gate control

  • Pneumatic (50W) and hydraulic (250W) valve

  • Easy operation and convenient replacement

Features of SVGC Modular Controller

Specification of SVGC  Modular Controller

Power SupplyAC85~265V, 50/60Hz
Zone Number1-24
Control FunctionAuto / Manual
Control ModeMode-0 / Mode-1
Time Range0.0~999.9s / 0.00~99.99s
Signal InputDC24V / Relay contact
Output TypeDC24V, AC220V or relay contact
Load CapacityAC220V output (total less than 1A)
DC24V output, 50W or 250W (less than 100mA per gate)
Relay contact (total 3A/220V)
Working Temperature0~55°C (0~131°F)
Working Humidity10~80% RH (No condensing)
Storage Temperature-20~70°C (-4~158°F)

Functions of SVGC Modular Controller

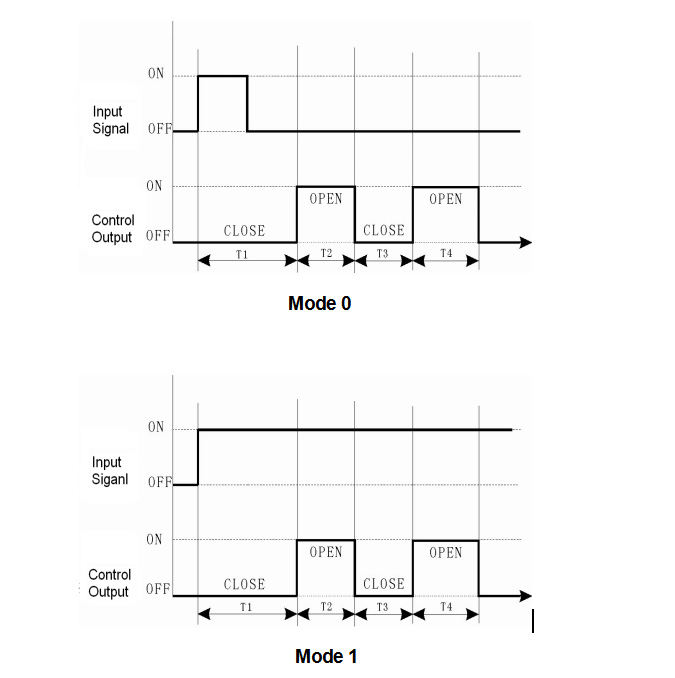

Control Process
valve gate controller
