HRTC-N1 Control Modules

Tinko HRTC-N is still an LCD liquid crystal display and supports functions such as self-tuning/soft start/fast heating. A more economical option compared to G modules.

Get A Quote

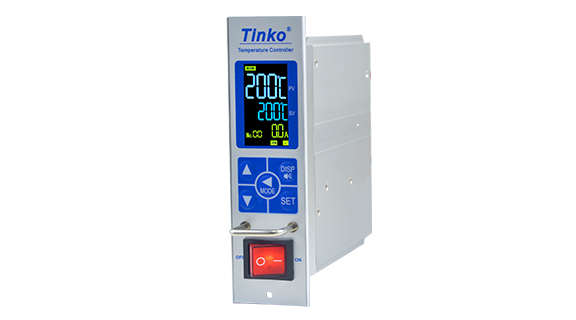

Hot Runner Temperature Controller Working
Hot Runner Temperature Controller Working

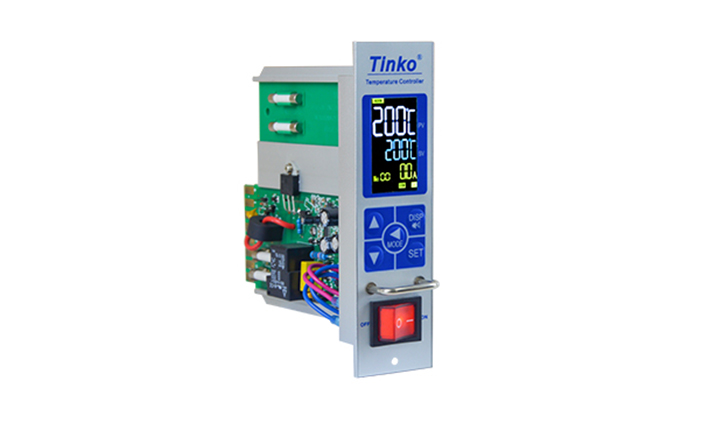

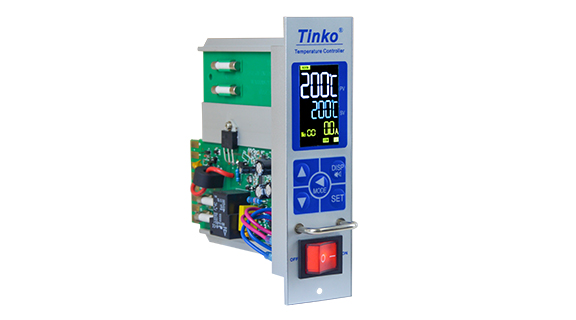

Hot Runner Controller System

Features of HRTC-N1 Control Module

  • Color LCD display

  • Load current / output percent display

  • Zone number display

  • Auto/Manual/Standby

  • Built-in buzzer

  • Smart SOFT START function

  • Manual output in case of temperature sensor unusually

  • Output percentage limit setting

  • Compatible with DME, YUDO, etc brand of modules

Features of HRTC-N1 Control Module

Specifications of HRTC-N1 Control Module

Power Input

AC85~265V, 50/60 Hz

Power Output

240Vac, 15A, 3600W

Power Consumption


Sensor Type

J or K

Control Mode

Auto, Manual

Output Mode

Phase Angle, Zero Cross

Measurement Range


Measurement Accuracy

± 0.25% Full scale

Setting Range


Control Accuracy

± 0.5°C

Working environment

-0~55°C, 10~80% RH(No condensing)

Functions of HRTC-N1 Control Module

Alarms & Protection
difference between hot runner and cold runner injection molding
  • High/Low temperature alarm

  • Thermocouple open, reverse, short alarm

  • Heater open, short, overload alarm

  • Heating invalid alarm

  • Over-voltage protection

  • Overload protection, cut off output

  • Short circuit protection, cut off output

  • Triac damage protection, cut off output
