HRTC-G1 Control Modules

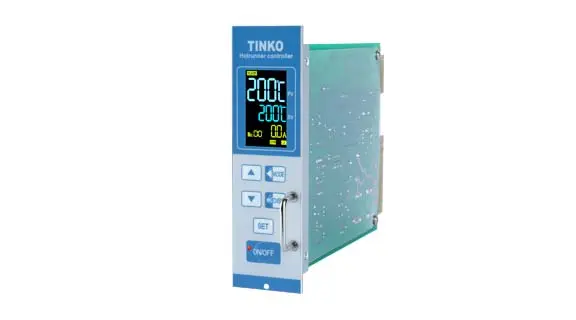

Tinko HRTC-G1 hot runner control module is using a wide viewing angle LCD screen. It can display more information at the same time than the LED screen, such as soft start status, alarm information, etc. It supports RS485 communication, alarm output function and remote standby function. With these special functions, this excellent module can help you improve production automation and efficiency.

Get A Quote
difference between cold runner and hot runner
difference between cold runner and hot runner
hot runner controller
hrtc g1 control module
module temperature controller
temperature controller module
hot runner temperature controller

Features of HRTC-G1 Control Module

  • Color LCD display

  • Zone number display

  • 1 or 0.1 unit display resolution

  • Load current / output percent display

  • Auto/Manual/Standby

  • Smart SOFT START function

  • Automatic switch to manual mode once sensor failure

  • High limit of output percent

  • Remote standby or alarm output (optional)

  • RS485 communication (optional)

Features of HRTC-G1 Control Module

Specifications of HRTC-G1 Control Module

Power Input

AC85~265V, 50/60 Hz

Power Output

240Vac, 15A, 3600W

Power Consumption


Sensor Type

J or K

Temperature Unit

°C or °F

Control Mode

Auto, Manual

Output Mode

Phase Angle, Zero Cross

Measurement Range


Measurement Accuracy

± 0.25% Full scale

Setting Range


Control Accuracy

± 0.5°C

Working environment

-0~55°C, 10~80% RH(No condensing)


RS-485 (Modbus TCP)

Functions of HRTC-G1 Control Module

Alarms & Protection
  • High/Low temperature alarm

  • Thermocouple open, reverse, short alarm

  • Heater open, short, overload alarm

  • Heating invalid alarm

  • Over-voltage protection

  • Overload protection, cut off output

  • Short circuit protection, cut off output

  • Triac damage protection, cut off output
