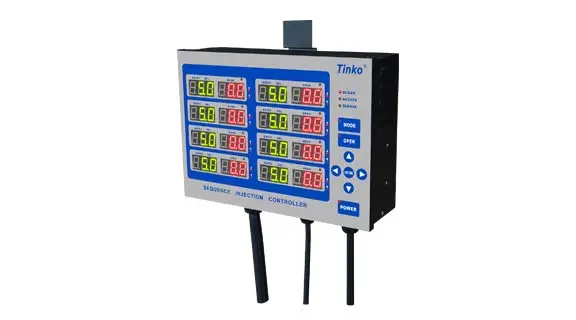

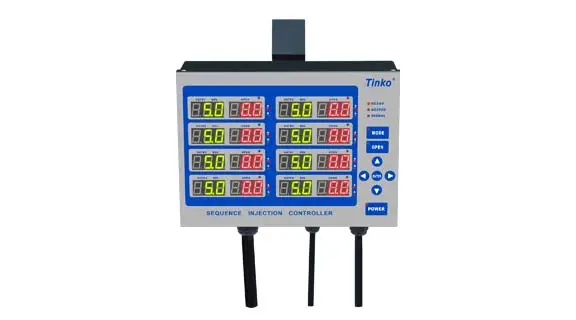

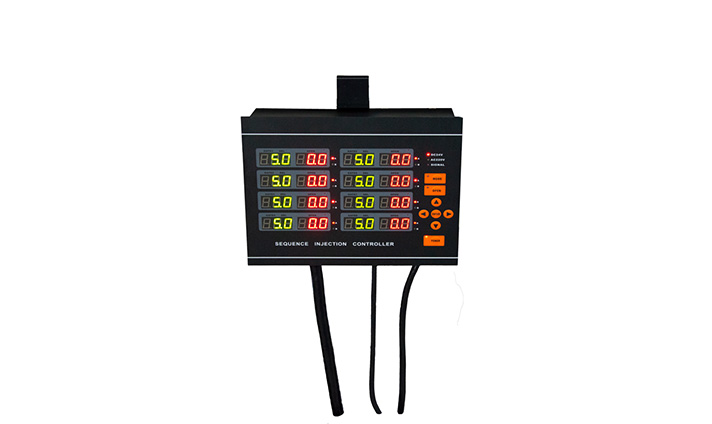

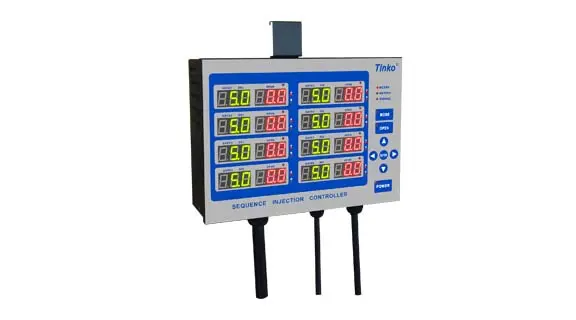

D600 Wall Mounted Controller

Tinko D600 series controller is a 8-zone integrated LED display sequential valve gate controller, which is applied to hot runner manifold systems with either pneumatic or hydraulic valve gates. The sequential valve gate controller has the ability to selectively open or close each valve gate individually to precisely control the material flow front. Improve mold balance and part quality. Essential control when molding complex or large parts.

Get A Quote
hot runner controller
hot runner controller
hot runner controller manufacturers
hot runner temperature controller price
hot runner controller price
temperature controller price

Features of D600 Wall Mounted Controller

  • 8 zone injection sequence control

  • LED display for delay & open time of each zone

  • Time display resolution: 0.1s or 0.01s

  • Injection signal: DC24V or Relay contact

  • Output type: DC24V, AC220V or relay contact

  • Three operating modes available for each valve gate

  • Automatic and manual mode for individual gate control

  • Pneumatic (50W) and hydraulic (250W) valve optional

Features of D600 Wall Mounted Controller

Specification of D600 Wall Mounted Controller

Power SupplyAC85~265V, 50/60Hz
Zone Number1- 8
Control FunctionAuto / Manual
Control ModeMode-A / Mode-B / Mode AB
Time Range0~999s / 0.0~99.9s / 0.00~9.99s
Signal InputDC24V / Relay contact
Output TypeDC24V, AC220V or relay contact
Load CapacityAC220V output: Total less than 1A
DC24V output: 50W or 250W, less than 100mA per gate
Relay contact: Total 3A/220V
nstallationWall mount
Working Temperature0~55°C (0~131°F)
Working Humidity10~80% RH (No condensing)
Storage Temperature-20~70°C (-4~158°F)

Functions of D600 Wall Mounted Controller

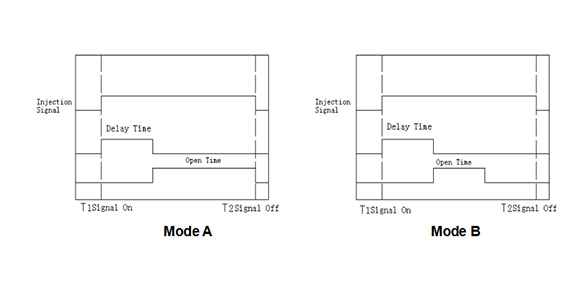

Control Process

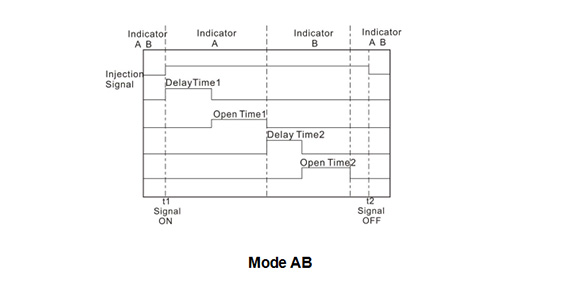

hydraulic valve gate controller

Control Process
