M20 Touch Screen Controller

Tinko M20 series controller is a touch screen integrated sequential valve gate controller, which is applied to hot runner systems with either pneumatic or hydraulic valve gates. The custom hot runner controller has a 10.4” LCD touch screen, which is convenient to operate and can display more parameters. It can open or close each valve gate individually to precisely control the material flow front. This sequential valve gate controller helps improve the welding line position of product and correct product defects, improve production efficiency and make product reach best quality.

Get A Quote
custom hot runner controller
custom hot runner controller

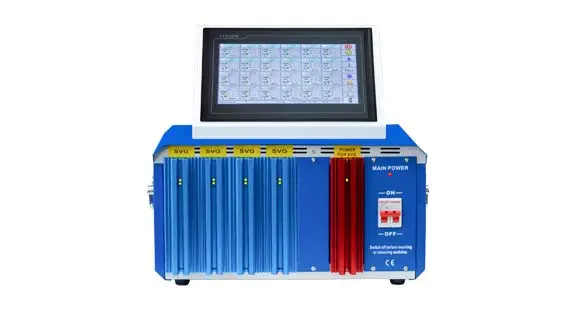

hot runner temperature controller price

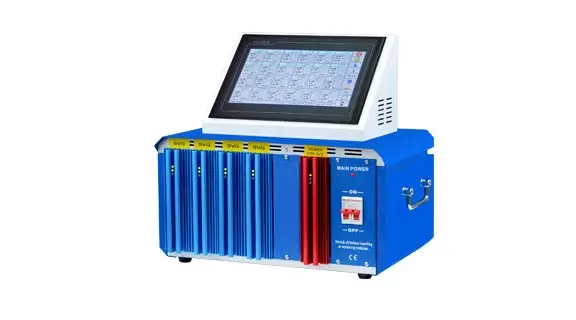

temperature controller price

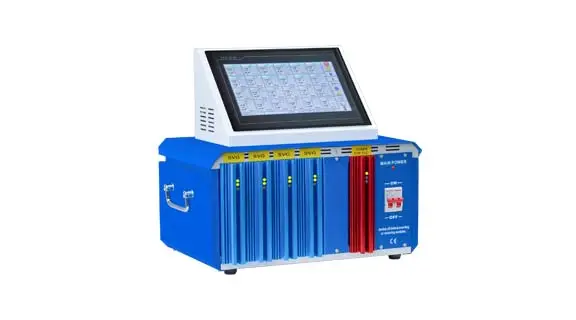

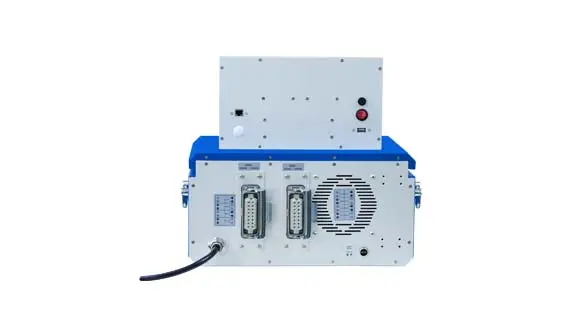

hot runner controller

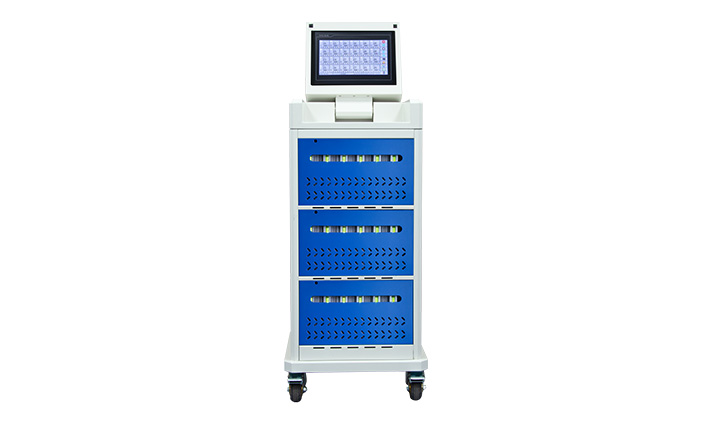

Features of M20 Touch Screen Controller

  • Integrated design with modular cabinet

  • 10” color LCD touch screen, easy operation

  • 6, 12, 18, 24 zone available

  • Time display resolution: 0s or 0.1s or 0.01s

  • Injection signal: DC24V or Relay contact

  • Output type: DC24V, AC220V or relay contact

  • Four operating modes available for each valve gate

  • Automatic and manual mode for individual gate control

  • Pneumatic (50W) and hydraulic (250W) valve

  • Easy operation and convenient replacement

Features of M20 Touch Screen Controller

Specifications of M20 Touch Screen Controller

Power SupplyAC85~265V, 50/60Hz
Zone Number6 - 24

10.4” full color LCD touch screen

Control FunctionAuto / Manual

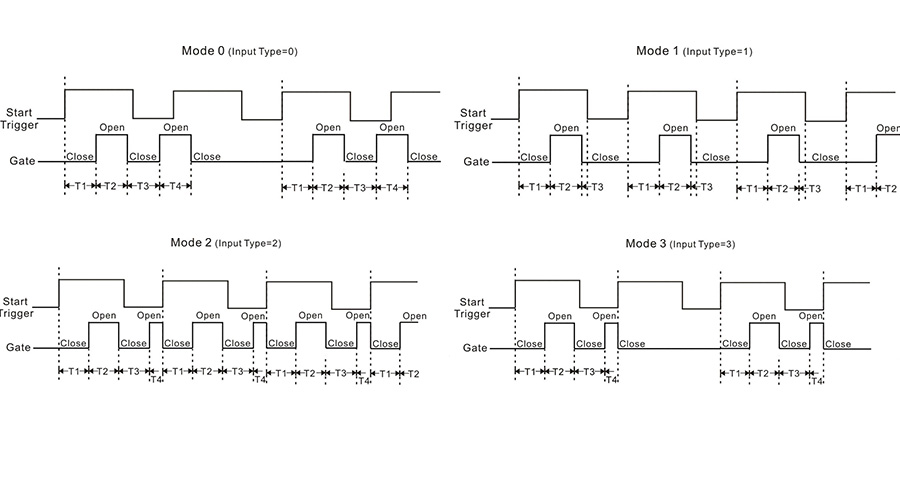

Control ModeMode-0 / Mode-1 / Mode-2 / Mode-3
Time Range:0~999s / 0.0~99.9s / 0.00~9.99s
Signal InputDC24V / Relay contact
Output TypeDC24V, AC220V or relay contact
Load CapacityAC220V output (total less than 1A)
DC24V output, 50W or 250W (less than 100mA per gate)
Relay contact (total 3A/220V)
Screw position signal0~10V
Screw position unitmm or inch
Working Temperature0~55°C (0~131°F)
Working Humidity10~80% RH (No condensing)
Storage Temperature-20~70°C (-4~158°F)

Functions of M20 Touch Screen Controller

Control Process
