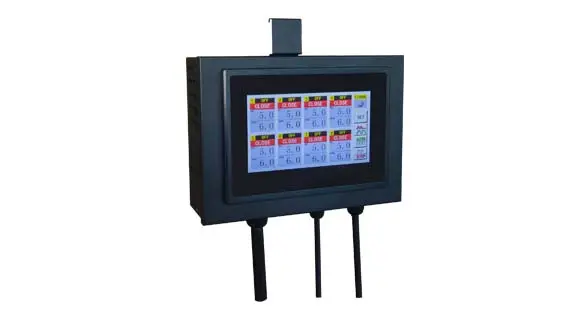

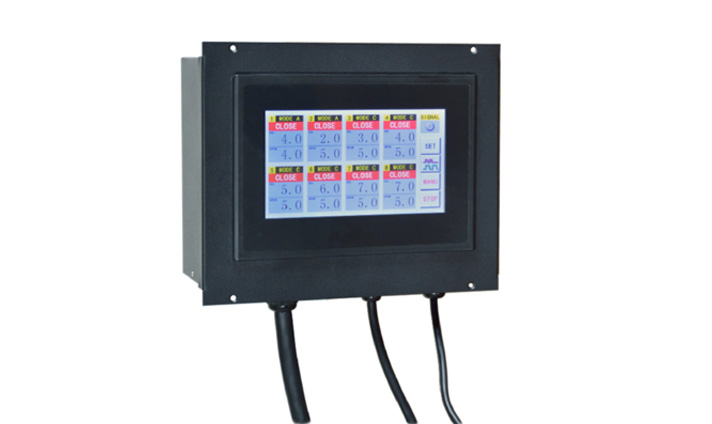

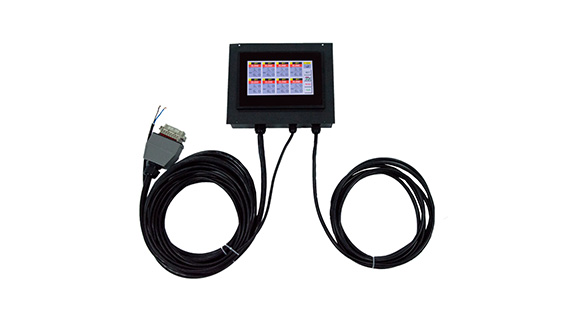

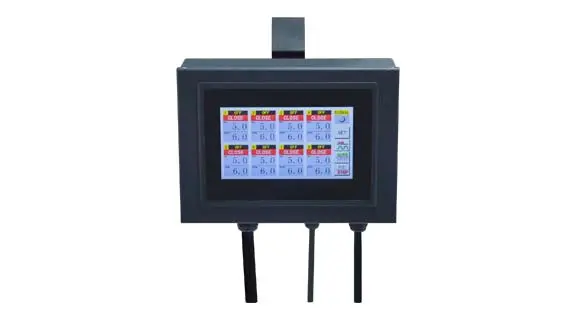

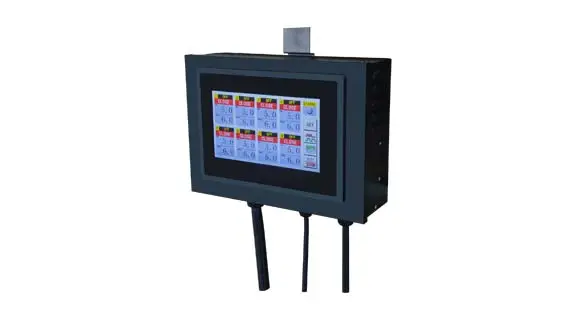

D800 Wall Mounted Controller

Tinko D800 series controller is a 8-zone integrated LCD display sequential valve gate controller, which is applied to hot runner manifold systems with either pneumatic or hydraulic valve gates. The valve gate controller has a 7" LCD touch screen, which is simple and convenient to operate. It has the ability to selectively open or close each valve gate individually to precisely control the material flow front. Improve mold balance and part quality. Essential control when molding complex or large parts.

Get A Quote
hot runner controller price
hot runner controller price
hot runner temperature controller price
temperature controller price
hot runner controller
hot runner controller price

Features of D800 Wall Mounted Controller

  • 8 zone injection sequence control

  • 7.0" color LCD touch screen, easy operation

  • Time display resolution: 0.1s

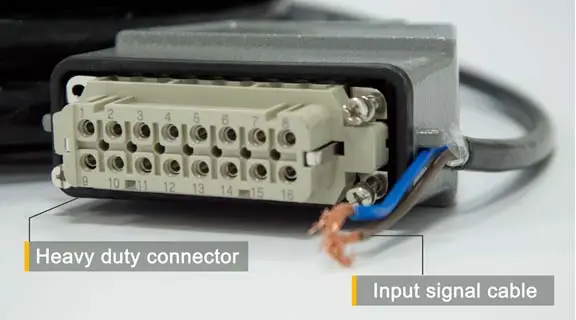

  • Injection signal: DC24V or Relay contact

  • Output type: DC24V, AC220V or relay contact

  • Three operating modes available for each valve gate

  • Automatic and manual mode for individual gate control

  • Pneumatic (50W) and hydraulic (250W) valve optional

Features of D800 Wall Mounted Controller

Specification of D800 Wall Mounted Controller

Power SupplyAC85~265V, 50/60Hz
Zone Number1- 8
Control FunctionAuto / Manual
Control ModeMode-A / Mode-B / Mode C
Time Range0~999s / 0.0~99.9s / 0.00~9.99s
Signal InputDC24V / Relay contact
Output TypeDC24V, AC220V or relay contact
Load CapacityAC220V output: Total less than 1A
DC24V output: 50W or 250W, less than 100mA per gate
Relay contact: Total 3A/220V
InstallationWall mount
Working Temperature0~55°C (0~131°F)
Working Humidity10~80% RH (No condensing)
Storage Temperature-20~70°C (-4~158°F)

Functions of D800 Wall Mounted Controller

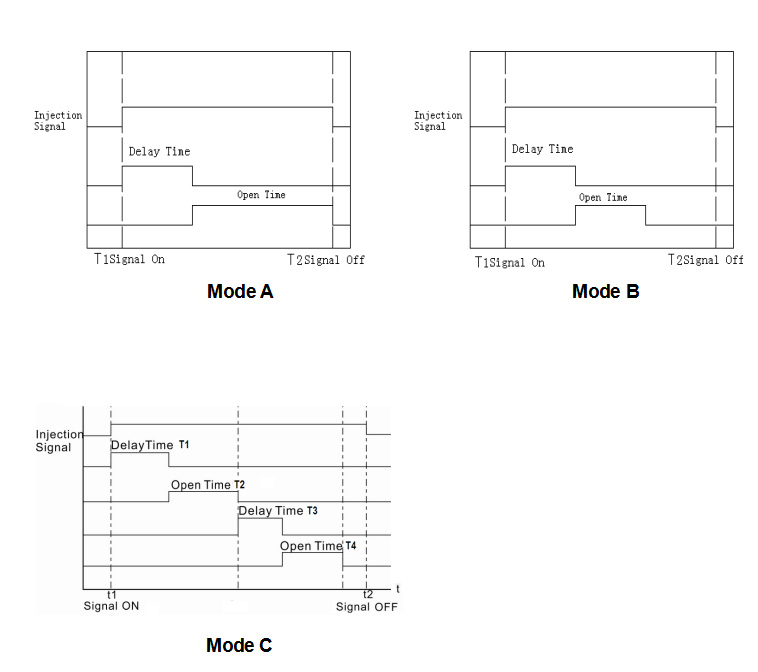

Control Process
pneumatic valve gate controller
