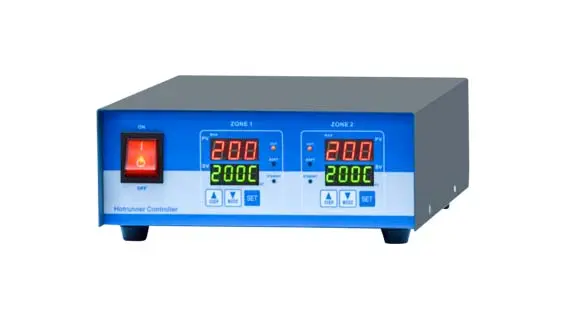

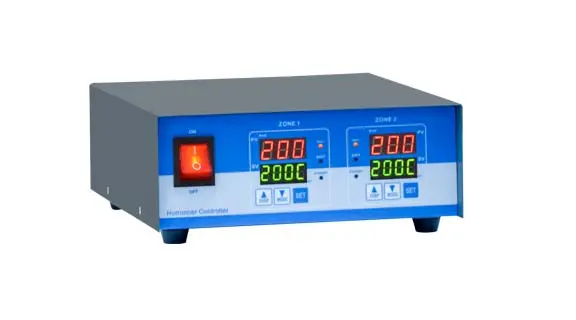

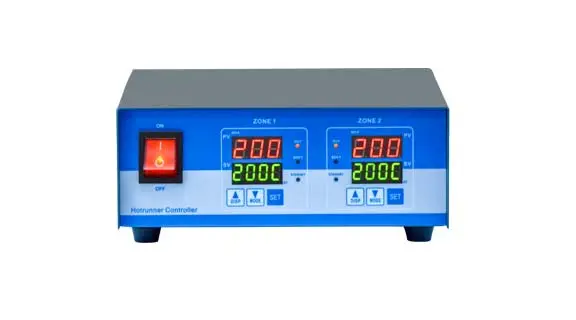

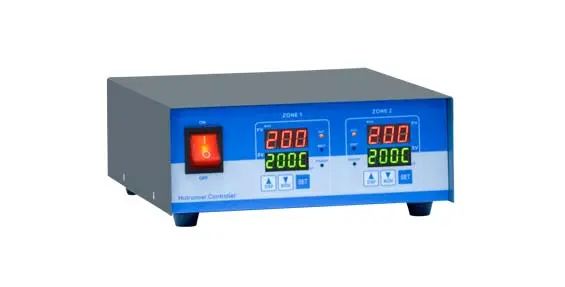

TSC-02 Stand Alone Controller

Name: TSC-02 Stand Alone Controller
Brand: Tinko Instrument (Suzhou) Co., Ltd.

Tinko TSC-02 integrated dual zone temperature controller is suitable for small mold. The portable controller is small size, light weight, complete functions and easy to operate. It is really a very smart and economic choice for your hot runner controller system.

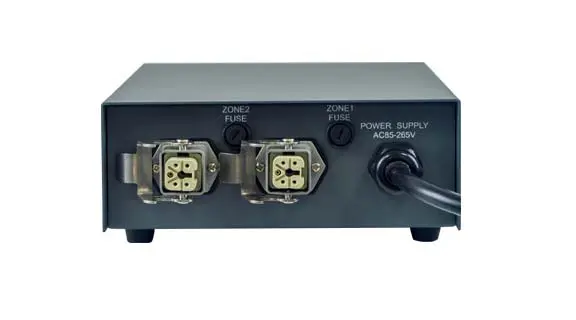

This dual zone temperature controller is pre-wired for 3 wires (AC-AC-Ground), single phase 240VAC. The integrated construction can provide good protection for the internal control unit. What’s more, this mini controller can provide strong anti-interference, high temperature control accuracy and strong stability.

Get A Quote 

Features

Specifications

Functions

Video

Downloads

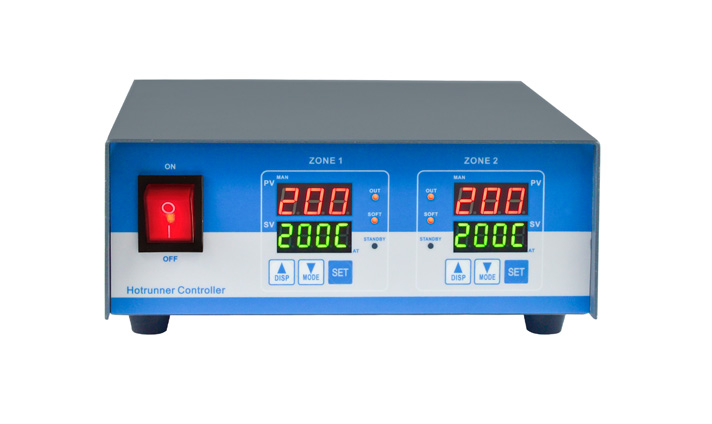

Features of TSC-02 Stand Alone Controller

Compact stand alone cabinet design
Small and light, easy to operate
LED display
PID control
Dehumidify soft start, protect machine
Internal alarm buzzer
Smart & economical for hot runner system

Specification of TSC-02 Stand Alone Controller

Power Supply	1-phase, 85-265Va, 50-60Hz
Temperature unit	°C or °F
Thermocouple	J or K
Output	240Vac, 15Amps per zone
Control Mode	Auto, Manual, Standby
Power Control	Phase Angle, Zero Crossing
Measurement Range	0~500°C(32~932°F)
Calibration Accuracy	± 0.25% Full scale
Setting Range	0~450°C(32~842°F)
Control Accuracy	± 0.5°C
Working environment	-0~55°C, 10~80% RH(No condensing)
