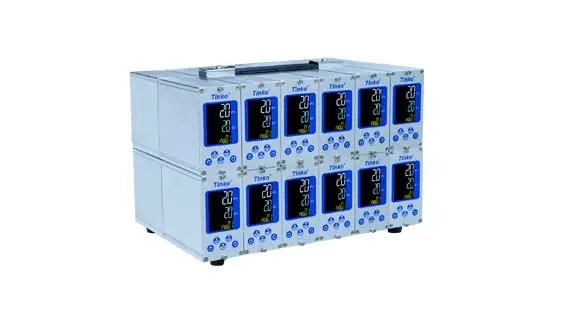

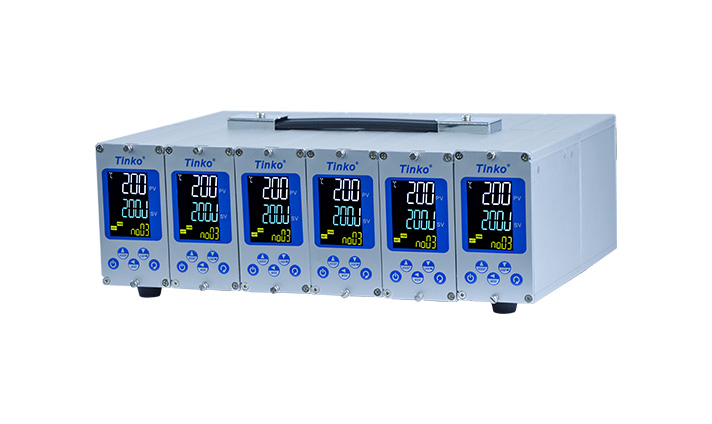

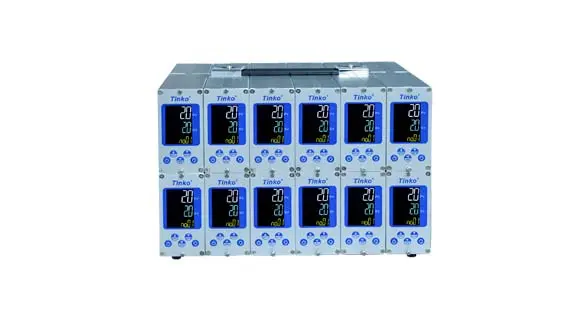

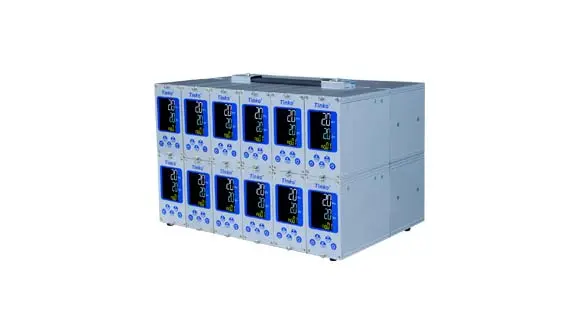

Tinko M10 Series Controller is a closed loop power distribution and sequence valve control system. The system can provide users with good sequential valve control capabilities. The custom hot runner controller is made of aluminum alloy, smaller than the conventional plug-in mainframes. Due to its unique construction, this controller has no fans or cooling holes, which can realize Dustproof, noiseproof and splashproof.
Adopt combined structure design, laser cutting, high precision
All aluminum alloy shell, no fan required, quiet and dust-proof
Modular structure, quick disassembly and assembly, easy maintenance
Use high quality plates, with light and strong anti-corrosion and anti-rust capabilities
LCD screen display
Control modules can meet different needs and projects
Auto/Manual control
3 types of control process
Max 24 zones valve gate control
Reliable internal wiring and performance
One-key startup, one-key shutdown, one-key standby
Power Supply: | AC85~ 265V, 50/60Hz |
Control Mode: | Auto/Manual control |

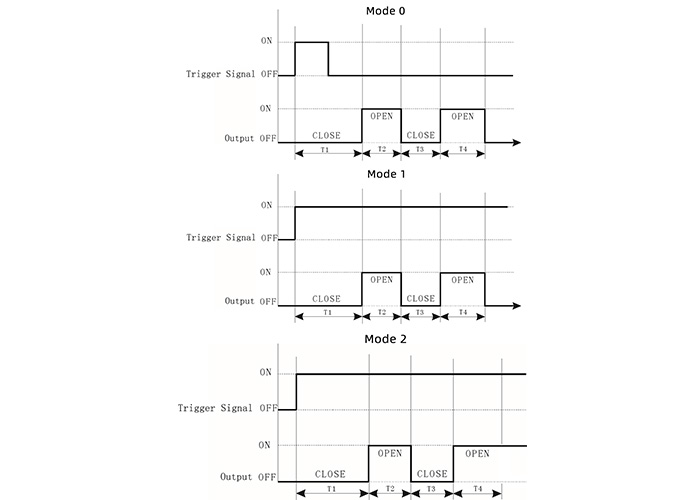

Control Process: | Mode-0 / Mode-1 / Mode-2 |

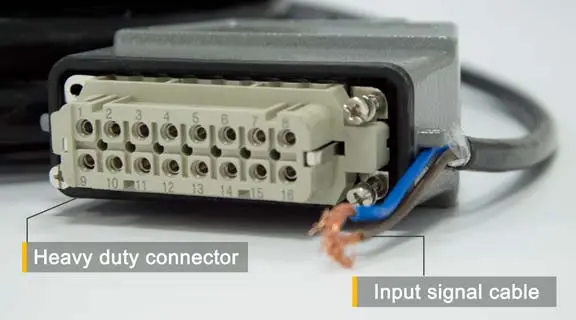

Input Type: | DC24V / Relay contact |
Output Type: | AC220V / DC24V / Relay contact |
Time Range: | 0.0~999.9s / 0.00~99.99s |
Load Capacity: | AC220V output: 3A |
| DC24V output: 30W | |
| Relay contact: 3A | |
Consumed Power: | <3W per module |
Working environment: | -0~50°C, 10~80% RH(No condensing) |
